K-Net AUTO

Craft food

Volumetric Filler K-Net AUTO

New

MANUFACTURER

CDA

Description

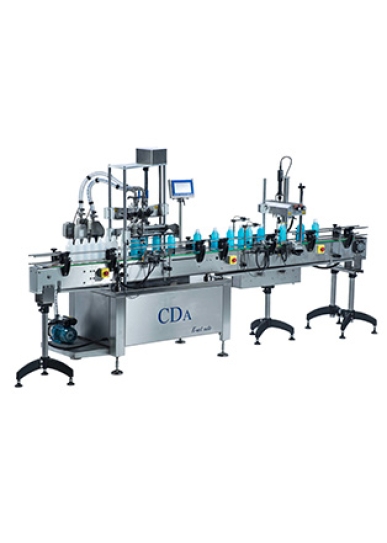

The K-Net Auto is an automatic filling machine designed for dosing liquid or viscous products. With a stainless steel frame and motorized conveyor, it meets hygiene standards required in food & beverage, cosmetics, chemicals, and paint/varnish industries.

It can be equipped with different dosing systems (piston, flowmeter, peristaltic pump, etc.) based on product type. The machine accommodates one or two dosing stations and can be fitted with optional capping modules like the VS400, VS500, or press-on cap applicators.

The K-Net Auto features an intuitive touchscreen interface, making it easy to operate and clean. Production capacity can reach up to 1200 bottles per hour. It's also compatible with CDA labeling machines such as the Ninon 1500, Ninon Konic, or Ninon Side.

TECHNICAL SPECIFICATIONS

Output: up to 1200 bottles/hour (depending on product and container)
Filling volume: from 50 ml to 5 L
Dimensions: 3670 x 1010 x 1800h mm
Weight: 450 kg (depending on configuration)
Power: 1 kW
Voltage: 220 V single-phase / 50 Hz / 16 A
Control: touchscreen
Ideal operating temperature: 10°C to 30°C
Supply requirements: electric + pneumatic (6 bar, hose Ø 8/10 mm)
